Ellipses

What are the ways we can generate ellipses?

We’ve been working with ellipses. I have talked about some of these this year. Others I haven’t. But I like this list for future reference.

The polar equation $r=\frac{1}{1-k\cos\theta}$ gives rise to ellipses if $0<|k|<1$
An ellipse arises out of squashing or stretching a unit circle horizontally or vertically (or both)
which means that algebraically…the rectangular equation is $(\frac{x}{\square})^2+(\frac{y}{\triangle})^2=1$

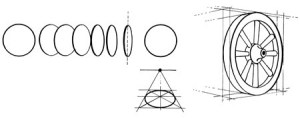

An ellipse arises out of looking at a circle straight on (so it looks like a circle) and then tilting that circle.

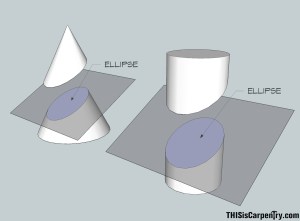

Ellipses can be created by taking a cone (or cylinder) and slicing it at a variety of anglesThis is equivalent to shining a flashlight at a wall at an angle:

The set of points from two points (called foci) which have a set sum of distances from these two pointsand for a cool video illustrating this (alongside the reflective property of ellipses):
Drop a planet in space near a massive object, and give it an initial push (velocity)
[not drawn to scale, obvi.]

13 comments

What’s it matter that student can draw a perfect ellipse by hand? I was trying to find an answer for that a couple months ago…

samjshah says:

April 24, 2013 at 1:24 am

I don’t know if you mean you don’t see the value of drawing perfect ellipses (meaning they need to be drawn accurately/precisely)… or that you don’t see the value of drawing ellipses by hand at all (meaning: we have calculators and computer programs that can do that).

Reply
1. mrcbaker4math says:

  April 24, 2013 at 2:20 am

  I meant drawing BY HAND – thanks for clarifying.

Great time of yr to go outside with sidewalk chalk and string to draw ellipses. Have you ever tried it? Use one kids’ legs as foci, tie string into circle, and another kid pulls string taut with chalk and marks out a great ellipse. Possible to do hyperbola but trickier. They can play w/width between foci, difft string length.

samjshah says:

April 24, 2013 at 1:27 am

Awww cute! I didn’t do that. I’m stupid and just taped pieces of strings of different length to large whiteboards, and then briefly had kids draw them on the whiteboards with dry erase markers.

But next year… yes.

The hyperbola in the same way? Perhaps, though I have my doubts.

Reply

No you’re right – not hyperbola, but parabola. It’s from Illuminations. http://illuminations.nctm.org/LessonDetail.aspx?id=L815
We don’t get into circ/ellipse/hyper here at my new school in Alg2, so I haven’t done this activity in a while.

Sam

I stole your idea from a recent post when my Precalc Honors class started our conics unit. We used Desmos and a slider and came up with some wacky shapes as we modified. The kids were engaged, were curious about the results of their guesses and even got a little competitive. Super cool. It was also a nice way to remind them that trig has not gone away even though we were safely back in a world devoid of trig functions.

Love Reilly’s idea of sidewalk chalk. If spring ever does arrive for real here in PA we might go out and do that. I used to do shoestrings and thumbtacks on my door

Or: if A is a nonsingular 2×2 matrix, and v = (cos(t), sin(t)), then the set Av will be an ellipse (for t in [0,2pi]). Probably beyond where you want to go but it could be an excuse to introduce matrix-vector multiplication.

samjshah says:

April 26, 2013 at 1:03 am

I am going to be talking about ellipses parametrically on Monday! Love that we think alike!

Reply

Here’s another one….

I’ve used Geometer’s Sketchpad to construct ellipses by using the locus of a line perpendicular to a line segment, where one of the endpoints of the line segment is on a circle.
